COMMUNITY PAVILION | TIGER PAVILION | 2019
​

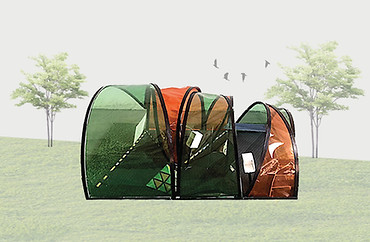

FACADE VIEW
​
SIDE VIEW
TIGER PAVILION
​
This project is about building a temporary structure in public space. The Tiger Pavilion was designed to educate people about the Malayan Tiger and to raise awareness on its extinction. It provides a temporary shelter for outdoor activities and helps to deliver a message to the users.
Concept - " Diminution "
The concept is about the decreasing amount of Malayan Tiger. Using the streak on the Tigers’body to generate a form express the concept. The proposed colour are green and orange which is to bring alerting message to users to look into the extiction of Malayan Tigers which live in the green.

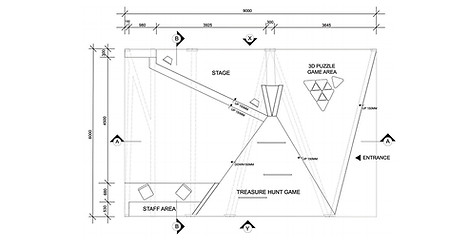

FURNITURE LAYOUT PLAN
​
​

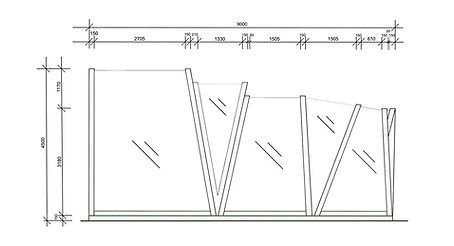

ELEVATION
FURNITURE LAYOUT PLAN
LONG ELEVATION
SECTIONS
SECTION A -A
SECTION B-B
